Leaf Moisture Sensor

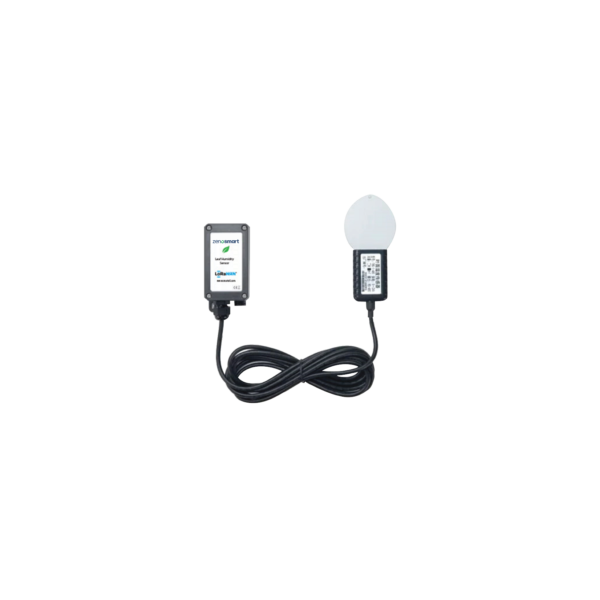

ZenoSmart LoRaWAN Leaf Moisture Sensor precisely measures the moisture and temperature levels on plant leaf surfaces, providing valuable data for irrigation management, dew formation, humidification, and frost risk analysis. Thanks to its LoRaWAN connectivity, this data is transmitted in real-time to cloud platforms, enabling more informed agricultural decision-making. With its IP67-protected design and special leaf-shaped structure, the sensor ensures long-term reliable performance in outdoor environments. The device is battery-powered and easy to install; once the probe is placed in the appropriate area, data collection begins automatically.
By default, the sensor transmits data every 15 minutes, and this interval can be adjusted via the IoT interface according to specific needs. Through the ZenoSmart platform, data can be monitored in daily, weekly, or monthly reports. By accurately determining the plant’s real water requirements, it prevents over-irrigation and yield losses while reducing the risks of diseases and pests. As a result, it supports healthy plant growth and maximizes agricultural productivity.
| Feature | Details |
|---|---|
| Power Supply | Internal 8,500 or 19,500 mAh Li-SOCl₂ battery, 2.5V ~ 3.6V |
| Operating Temperature | -40 ~ 85 °C |
| Leaf Moisture | Range: 0–100% of leaf surface water droplets Resolution: 0.1% Accuracy: ±3% (0–50%), ±6% (>50%) Cable Length: 3.5 m Protection: IP67 |
| Leaf Temperature | Range: -50 °C ~ 80 °C Resolution: 0.1 °C Accuracy: <±0.5 °C (-10 °C ~ 70 °C), <±1.0 °C (others) Cable Length: 3.5 m Protection: IP67 |
| LoRa Features | Frequency Range: 862 ~ 1020 MHz (Band 1, HF) RF Output Power: up to +22 dBm RX Sensitivity: down to -139 dBm Excellent blocking immunity |
| Battery | Type: Li-SOCl₂ non-rechargeable Capacity: 8,500 mAh or 19,500 mAh Self-discharge: <1% / year @ 25 °C Max Continuous Current: 130 mA Max Pulse Current: 2 A (1 sec) |
| Power Consumption | Sleep Mode: 5 µA @ 3.3V LoRa Transmission: 125 mA @ 20 dBm, 82 mA @ 14 dBm |
1. What does the ZenoSmart Leaf Moisture Sensor measure?
The sensor precisely measures moisture and temperature levels on plant leaf surfaces, helping with irrigation management, dew formation, humidification, and frost risk analysis.
2. How is the sensor installed and powered?
The device is battery-powered and easy to install. Once the leaf-shaped probe is placed in the appropriate area, it automatically starts collecting and transmitting data via LoRaWAN.
3. How often does the sensor send data, and can it be adjusted?
By default, the sensor transmits data every 15 minutes. This interval can be adjusted through the IoT interface according to specific needs, though higher transmission frequency may reduce battery life.
