Product Code :
SNML327A

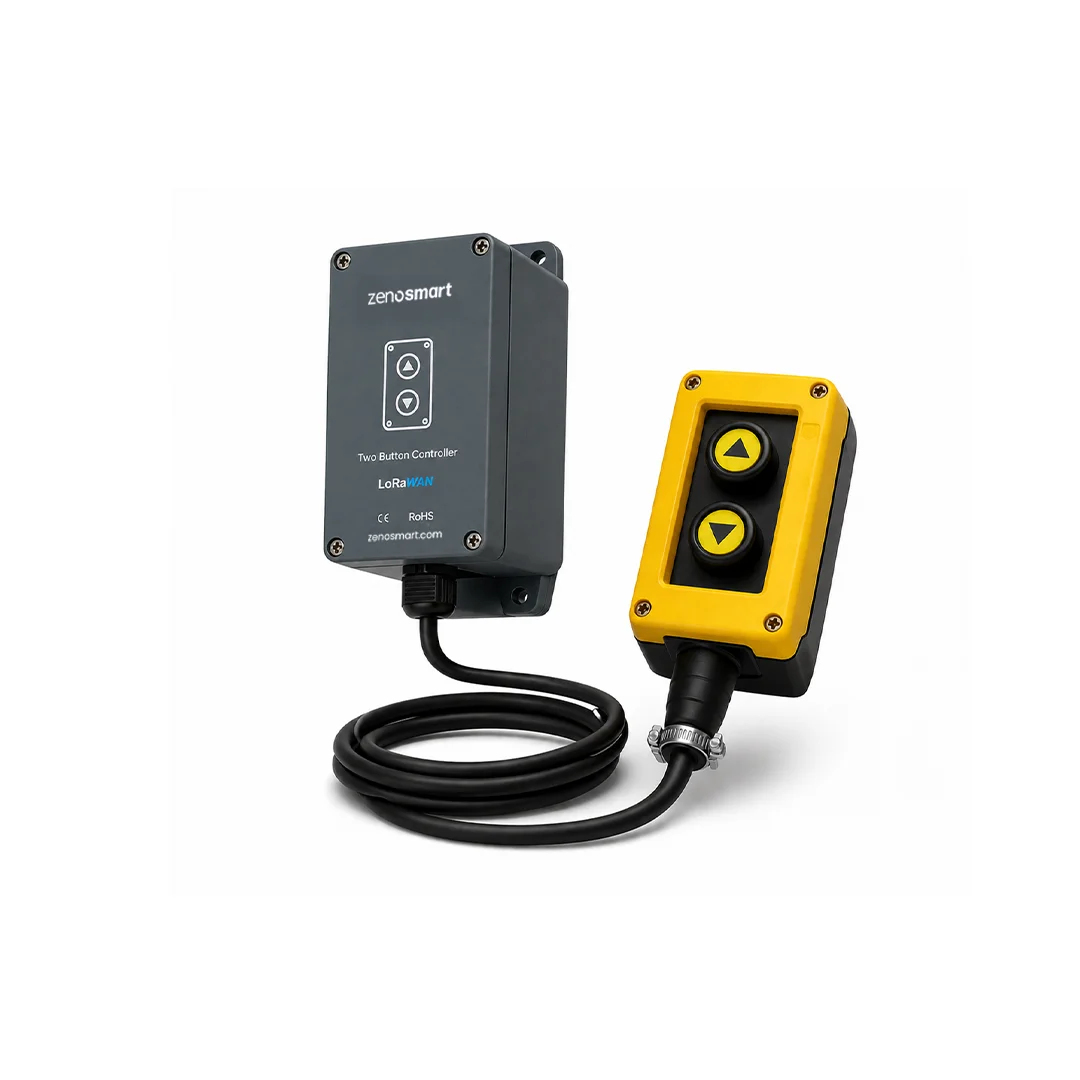

2-Button Controller

The 2-Button Controller is a professional solution equipped with the power of LoRa technology, designed to provide reliable and energy-efficient control over wide coverage areas. Thanks to its wireless architecture and low power consumption, it modernizes your operational processes while minimizing installation costs.

Fast and Seamless Communication: It ensures processes are managed effectively and without delay by sending instant signals to relevant systems. Energy Efficiency: Its ultra-low power consumption architecture maximizes battery life and eliminates the need for frequent maintenance. Easy Installation: Its battery-operated, wireless design removes the need for complex wiring, allowing for rapid integration and flexible use in any environment. Durable and Ergonomic: It delivers stable performance with its user-friendly design and a robust housing resistant to environmental conditions, suitable for both indoor and outdoor use.

Technical Advantages: LoRa Protocol

Long-Range Access: Thanks to LoRa (Long Range) technology, it stays connected to the central unit from kilometers away, even in challenging industrial environments with signal-blocking obstacles. High Interference Resistance: Its structure, which prevents conflict with other wireless frequencies, guarantees the maintenance of signal quality and the continuity of data transmission. Customizable Scenarios: Its dual-button structure allows for the independent management of different control scenarios, such as on/off, start/stop, or emergency notifications.

Use Cases

The 2-Button Controller is a practical, high-tech endpoint solution developed to enhance control capabilities and support operational flexibility in smart building automation, industrial production facilities, agricultural monitoring systems, and smart city projects.



Category Parameter Specification
Power Supply Battery Type 2 × AAA Alkaline Battery (or equivalent)
Battery Life Up to 5 years (typical, application dependent)
Standby Current Ultra-low power consumption
Communication Wireless Technology LoRaWAN® 1.0.4 Class A
RF Frequency 868 MHz (Iran)
Receiver Sensitivity Up to -137 dBm
Transmit Power Up to +22 dBm
Communication Distance Up to 10 km (open area)
Antenna Integrated Internal Antenna
Security AES-128 Encryption
Control Buttons 2 Programmable Push Buttons
Button Functions Single Press, Long Press, Double Press (configurable)
Trigger Modes On/Off, Start/Stop, Emergency, Custom Commands
LED Indicator Status & Transmission Indicator
Configuration Device Configuration OTA Configuration
Firmware Update OTA (Over-the-Air)
Mechanical Protection Rating IP65 (Outdoor use)
Operating Temperature -20 °C to +60 °C
Operating Humidity 5–95% RH (Non-condensing)
Enclosure Material ABS / PC Plastic
Mounting Wall Mount / Portable
Dimensions / Weight Approximately 82 × 82 × 15 mm
Approximately 100 g (Battery included)
Compliance Wireless Standard LoRaWAN® Certified
Certification CE
