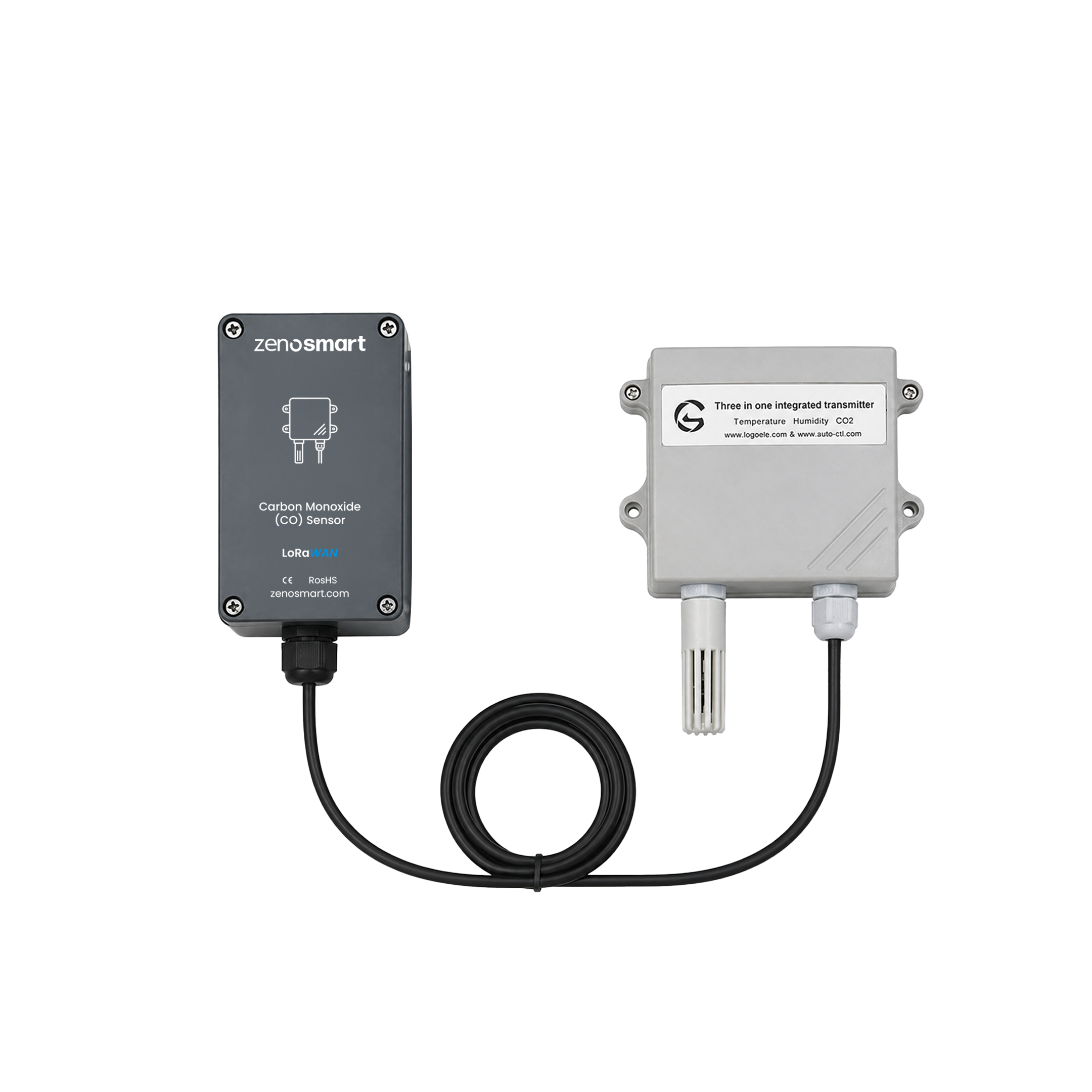

The Carbon Monoxide (CO) Sensor is a high-precision gas monitoring solution designed to continuously detect carbon monoxide concentrations in real time. By providing accurate and reliable CO data, it enhances workplace safety, supports environmental monitoring, and enables rapid response to hazardous conditions across industrial, commercial, and smart building applications.
Accurate CO Monitoring: It continuously measures carbon monoxide concentrations with high precision, providing reliable data for early hazard detection and air quality management.
Real-Time Data Transmission: It instantly transmits CO measurements to centralized monitoring platforms, enabling immediate alerts and rapid response to potentially dangerous situations.
Low Power Consumption: Its energy-efficient architecture ensures long-term operation with minimal maintenance, making it suitable for remote and large-scale monitoring deployments.
Reliable Wireless Connectivity: Supporting LPWAN communication technologies such as LoRaWAN and NB-IoT, it provides secure, stable, and long-range communication for uninterrupted data transmission.
Industrial-Grade Reliability: Designed for continuous operation in demanding environments, its robust construction ensures dependable performance in both indoor and outdoor applications.
High Measurement Accuracy: Advanced sensing technology delivers precise and consistent carbon monoxide measurements for reliable safety and environmental monitoring.
Continuous Gas Monitoring: Provides uninterrupted real-time CO data, enabling early detection of hazardous gas concentrations and supporting automated safety systems.
Scalable System Integration: Easily integrates into industrial safety systems, smart building platforms, HVAC systems, environmental monitoring networks, and IoT infrastructures.
Reliable Long-Term Performance: Engineered for continuous monitoring, it offers stable operation with minimal maintenance requirements and extended service life.
The Carbon Monoxide (CO) Sensor is an intelligent monitoring solution developed for industrial facilities, underground parking garages, commercial buildings, warehouses, boiler rooms, HVAC systems, tunnels, environmental monitoring projects, and smart city infrastructures where continuous carbon monoxide monitoring is essential.
| Category | Parameter | Specification |
|---|---|---|
| Power Supply | Battery Type | 3.6V Li-SOCl₂ Battery |
| Battery Life | Up to 5 Years (Typical, application dependent) | |
| Power Consumption | Ultra-low Power Design | |
| Battery Status | Low Battery Detection | |
| Communication | Wireless Technology | LoRaWAN® 1.0.4 Class A / NB-IoT (Optional) |
| RF Frequency | 868 MHz (Iran) | |
| Receiver Sensitivity | Up to -137 dBm | |
| Transmit Power | Up to +22 dBm | |
| Communication Range | Up to 10 km (Open Area) | |
| Security | AES-128 Encryption | |
| Firmware Update | OTA (Over-the-Air) | |
| Sensor | Measurement Principle | Electrochemical CO Sensor |
| Measurement Range | 0–1000 ppm | |
| Accuracy | ±5 ppm or ±5% of Reading (Typical) | |
| Resolution | 1 ppm | |
| Sampling Interval | Configurable | |
| Data Reporting | Periodic or Event-Based Transmission | |
| Mechanical | Protection Rating | IP65 |
| Operating Temperature | -20°C to +60°C | |
| Operating Humidity | 0–95% RH (Non-condensing) | |
| Enclosure Material | UV Resistant ABS / PC | |
| Installation | Wall Mount / Pole Mount | |
| Dimensions | Approximately 110 × 75 × 40 mm | |
| Compliance | Wireless Standard | LoRaWAN® Certified |
| Certification | CE |
Why is carbon monoxide monitoring critical for safety? Carbon monoxide is a colorless and odorless gas that can pose serious health risks at elevated concentrations. Continuous CO monitoring enables early detection, supports automatic alarm and ventilation systems, and helps protect people, equipment, and facilities by allowing rapid response to hazardous conditions.
