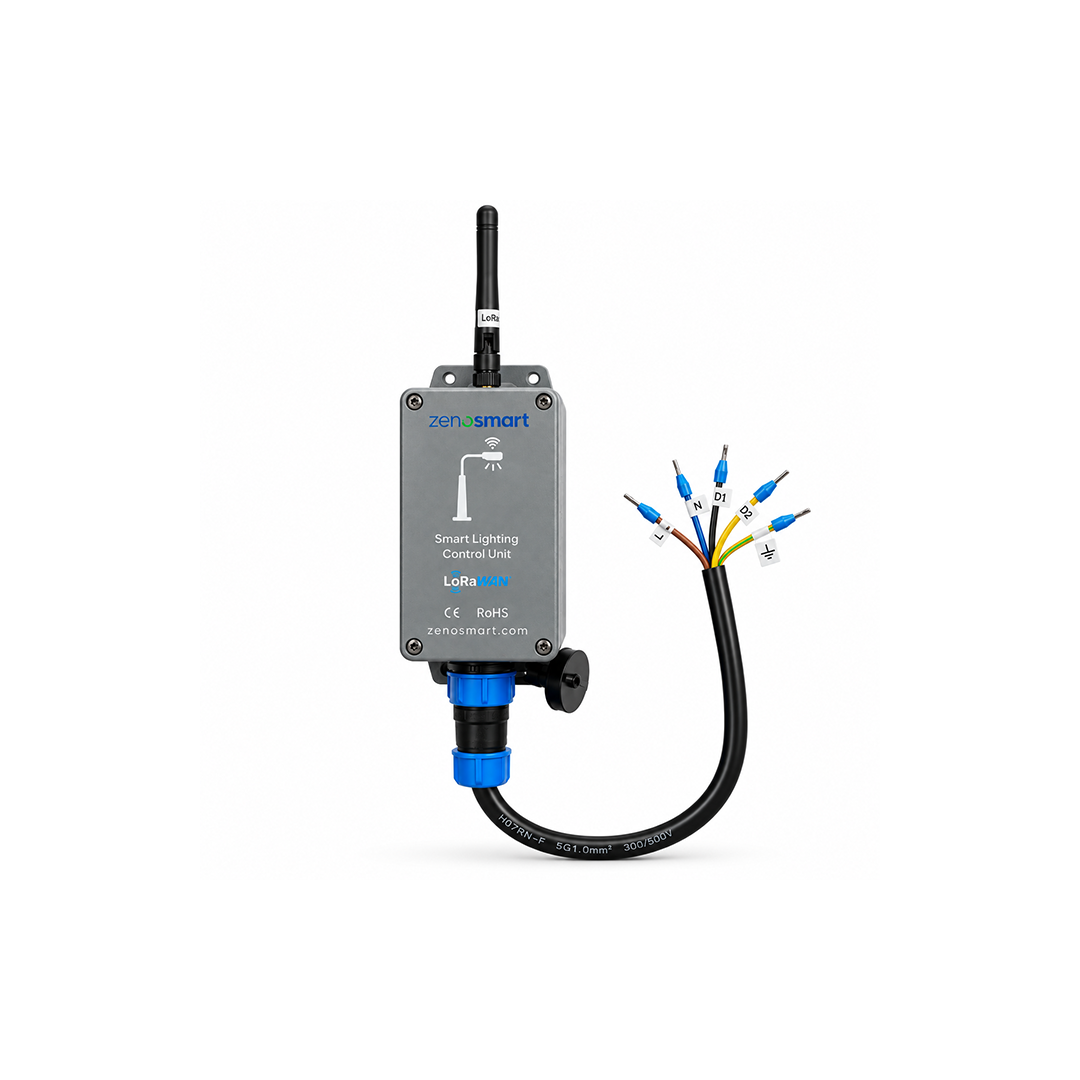

The Zenosmart Custom Enclosure Lighting Control Unit is designed to maximize energy savings and operational efficiency in urban lighting infrastructures. The device monitors all critical electrical data, including voltage, current, power, power factor, and frequency, to increase energy efficiency and optimize maintenance processes. Cities and businesses can achieve significant cost savings. Its rugged IP67-rated enclosure offers durability and uninterrupted use even in harsh weather conditions such as rain, dust, and temperature fluctuations. The custom enclosure control unit can be monitored and managed through both field operations and cloud-based management platforms. With flexible control options, time-based programming, ambient light sensors, and adaptive lighting scenarios, the system can operate completely autonomously. Advanced features include impact and tilt detection, Bluetooth configuration, GPS tracking, and optional light sensor integration. Additionally, the Zenosmart Lighting Controller is designed to be fully compatible with existing lighting systems and third-party solutions. Thanks to open communication protocols, an open-source JavaScript payload decoder, and the Zenosmart Connect application, system integrations are easy, secure, and cost-effective. In conclusion, all our control units fully support the TALQ standard and offer seamless integration with smart city management systems. This integration capability enables the standardization and centralized control of smart city applications.

Category	Parameter	Specification
Power Supply	Power Supply Type	24 VDC or 100–240 VAC
	Maximum Power Consumption	3 W (Maximum)
	Surge Protection	Integrated surge protection circuit
	Overcurrent Protection	Integrated overcurrent protection circuit (auto-reset)
Communication	Network Interface	LoRaWAN® 1.0.4 Class C / NB-IoT (3GPP LTE Release 14 Cat-NB1 & Cat-NB2 compliant)
	RF Frequency	868 / 915 / 923 MHz (LoRaWAN) / Cat-NB1/NB2: B3, B8, B20 (1710–1880, 880–960, 791–862 MHz)
	Receiver Sensitivity	-137 dBm @ 125 kHz BW SF12 (LoRaWAN) / -108 dBm (Cat-M1 low band), -107 dBm (mid band)
	Transmit Power	Up to +22 dBm (LoRaWAN, region dependent) / Up to +23 dBm (NB-IoT)
	Network Security	Encrypted communication (AES-128) / APN, VPN support
	GPS / GNSS	GPS / GLONASS / BeiDou / QZSS (Optional)
	Firmware Update (OTA)	Via Bluetooth & LoRaWAN®
	Bluetooth	Optional
Interfaces	DALI Control & Power	Controls up to 4 DALI ballasts with integrated 15V power supply
	Analog Output	0–10V or 1–10V analog output
	Logic Input (LSI)	2 × 0–24V configurable logic inputs (analog/digital)
Sensors	Light Sensor	Integrated, adjustable threshold
	Tilt Sensor	2-axis tilt sensor
Lamp Control	Dimming Range	0–100% (linear/logarithmic according to settings)
	Control Interface	DALI-2 / DiiA (IEC 62386) / D4i / 0–10V / 1–10V Analog
Measurement	Internal Parameters	A, V, W, Wh, WB, W Fund, PF, lamp operating time, sag/swell (for non-D4i drivers)
	D4i Reported Parameters	V, W, Wh, PF, lamp operating time and others (D4i drivers only)
	Measurement Accuracy	±0.5%
Output Switching	Mechanical Relay Contact	5A (100,000 switching cycles)
	Solid-State Relay	2A (with zero-cross detection)
	No Output	No output available
Timing	Real-Time Clock (RTC)	Yes, with supercapacitor backup (up to 15 days)
Environmental	Protection Rating	IP67 (IEC 60529)
	Operating Temperature	-20 °C to +60 °C
Mechanical	Weight	150 g
	Dimensions	154 × 65 × 59 mm (6.06 × 2.56 × 2.32 in)
	Enclosure Material	ABS
Compliance	Standards	EN 61347-1, EN 61347-2-11, EN 300220, EN 62368, EN 301489, EN 62479, EN 50581
	Certifications	CE
