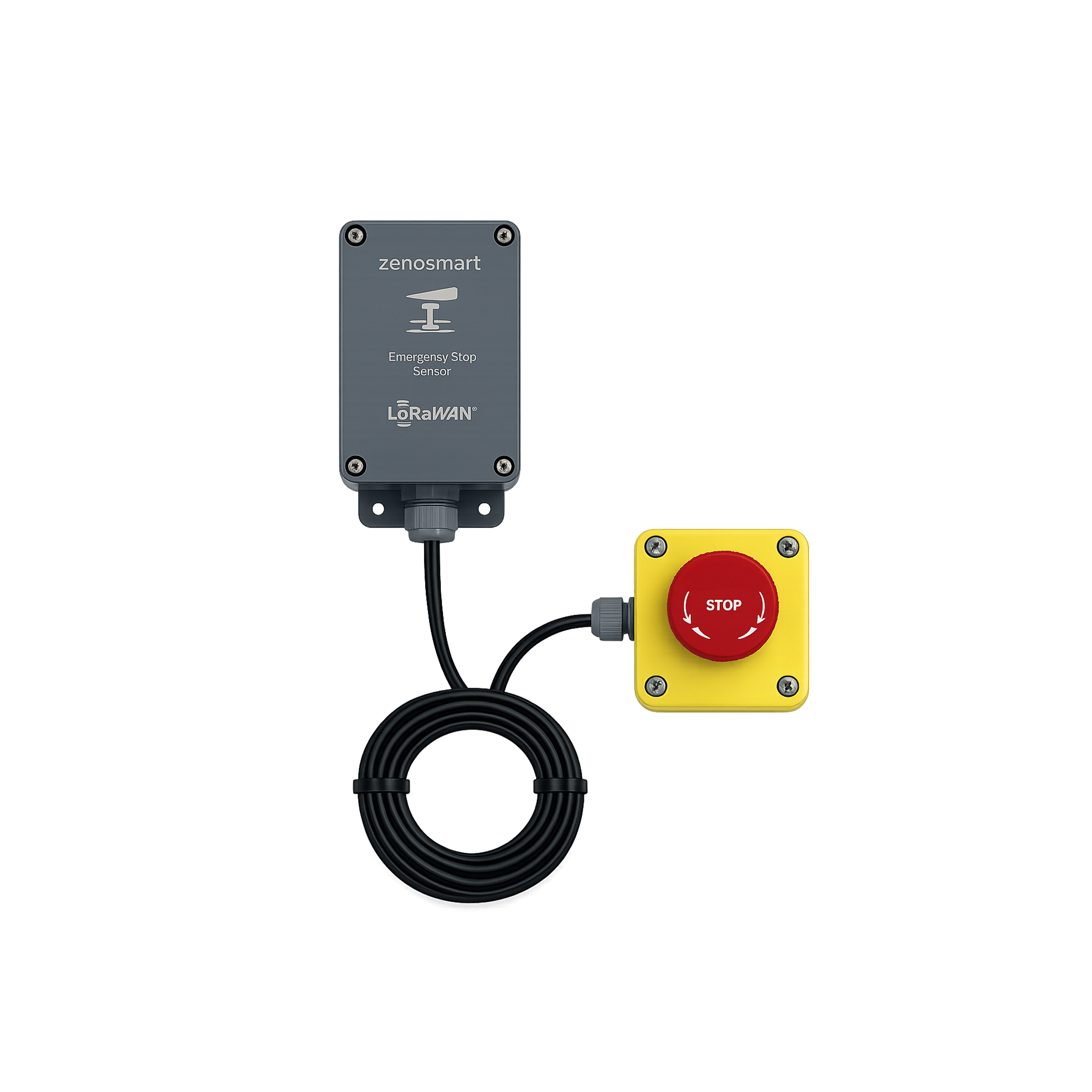

Emergency Button
The Zenosmart Emergency Button is a low-power solution designed to provide fast, reliable, and uninterrupted communication during emergencies. By generating an alarm or warning signal with a single touch, it sends immediate notifications to relevant systems and accelerates the response process. It makes safety management more effective by minimizing time loss, especially in emergency scenarios.
Thanks to its energy-efficient architecture, it offers a long battery life and requires minimal maintenance. Its battery-operated, wireless design eliminates the need for complex wiring, simplifying the installation process and allowing for rapid integration into various environments. This feature enables both easy addition to existing systems and flexible use in new projects.
Featuring a compact and ergonomic design, it provides a user-friendly experience. Its durable structure, suitable for both indoor and outdoor use, ensures stable performance under various environmental conditions. It stands out as an effective solution in smart building systems, industrial facilities, public spaces, and all projects with high security requirements.
The Zenosmart Emergency Button serves as a practical and effective emergency management component developed to enhance safety, accelerate response processes, and support operational efficiency.
| Category | Parameter | Specification |
|---|---|---|
| Power Supply | Battery Type | 1 × ER14335 Li-SOCl₂ Battery (Replaceable) |
| Battery Life | Up to 5 years (Typical, application dependent) | |
| Standby Current | Ultra-low power consumption | |
| Low Battery Indication | Supported | |
| Communication | Wireless Technology | LoRaWAN® 1.0.4 Class A |
| RF Frequency | 868 MHz (Iran) | |
| Receiver Sensitivity | Up to -137 dBm | |
| Transmit Power | Up to +22 dBm | |
| Communication Distance | Up to 10 km (Open Area) | |
| Antenna | Integrated Internal Antenna | |
| Security | AES-128 Encryption | |
| Emergency Functions | Button Type | 1 × Emergency Push Button |
| Alarm Trigger | Instant Emergency Alarm Transmission | |
| Trigger Mode | Single Press | |
| LED Indicator | Status & Alarm Indicator | |
| Buzzer | Optional | |
| Configuration | Device Configuration | OTA Configuration |
| Firmware Update | OTA (Over-the-Air) | |
| Mechanical | Protection Rating | IP65 |
| Operating Temperature | -20 °C to +60 °C | |
| Operating Humidity | 5–95% RH (Non-condensing) | |
| Enclosure Material | ABS / PC Plastic | |
| Mounting | Wall Mount / Portable | |
| Dimensions / Weight | Approximately 50 × 50 × 18 mm Approximately 40 g (Battery Included) |
|
| Compliance | Wireless Standard | LoRaWAN® Certified |
| Certification | CE |
